VSHOW T911 New Design Pioneer Beam Moving Head Lamp Beam Factory Price Beam LightMoving Head Light
VSHOW T911 New Design Pioneer Beam Moving Head Lamp Beam Factory Price Beam LightMoving Head Light
SPECIFICATIONS
Application: Landscape
Beam angle: 0.6°-2°
Brand Name: V-Show
Color Rendering Index(Ra): 95
Color Temperature(CCT): 78OOK
Color Wheel: 1 color wheel, 14 fixed colors plus white
Control Method: Dmx512
DMX Channels: 18CH
Emitting Color: RGBW
IP Rating: IP33
Input Voltage: AC90-260V 50/60Hz
Input Voltage(V): AC100-240V 50/60Hz
Lamp Luminous Efficiency(lm/w): 1
Lamp Luminous Flux(lm): 1400
Lifespan (Hours): 3000
Light Source: Induction Lamps,MSD Silver 300 LL (3000 hours)
Lighting solutions service: Lighting And Circuitry Design,Agi32 Layout,Project Installation
Material: Aluminum+plastic
N.W.: 14KG
Operation mode: DMX512, self-propelled, master/slave, RDM Electric focusing system
Place of Origin: Guangdong, China
Prism: Equipped with 18 prism
Product Weight（kg）: 14 KG
Static Gobo Wheel: 16 gobos plus 1 white circle
Support Dimmer: Yes
Type: Moving Head Lights
Warranty(Year): 1-Year
Working Temperature(℃): -20 - 40
V-Show New Design T911 Pioneer Beam moving head Lamp Sharpy Beam Moving Head Light with Factory Price beam light

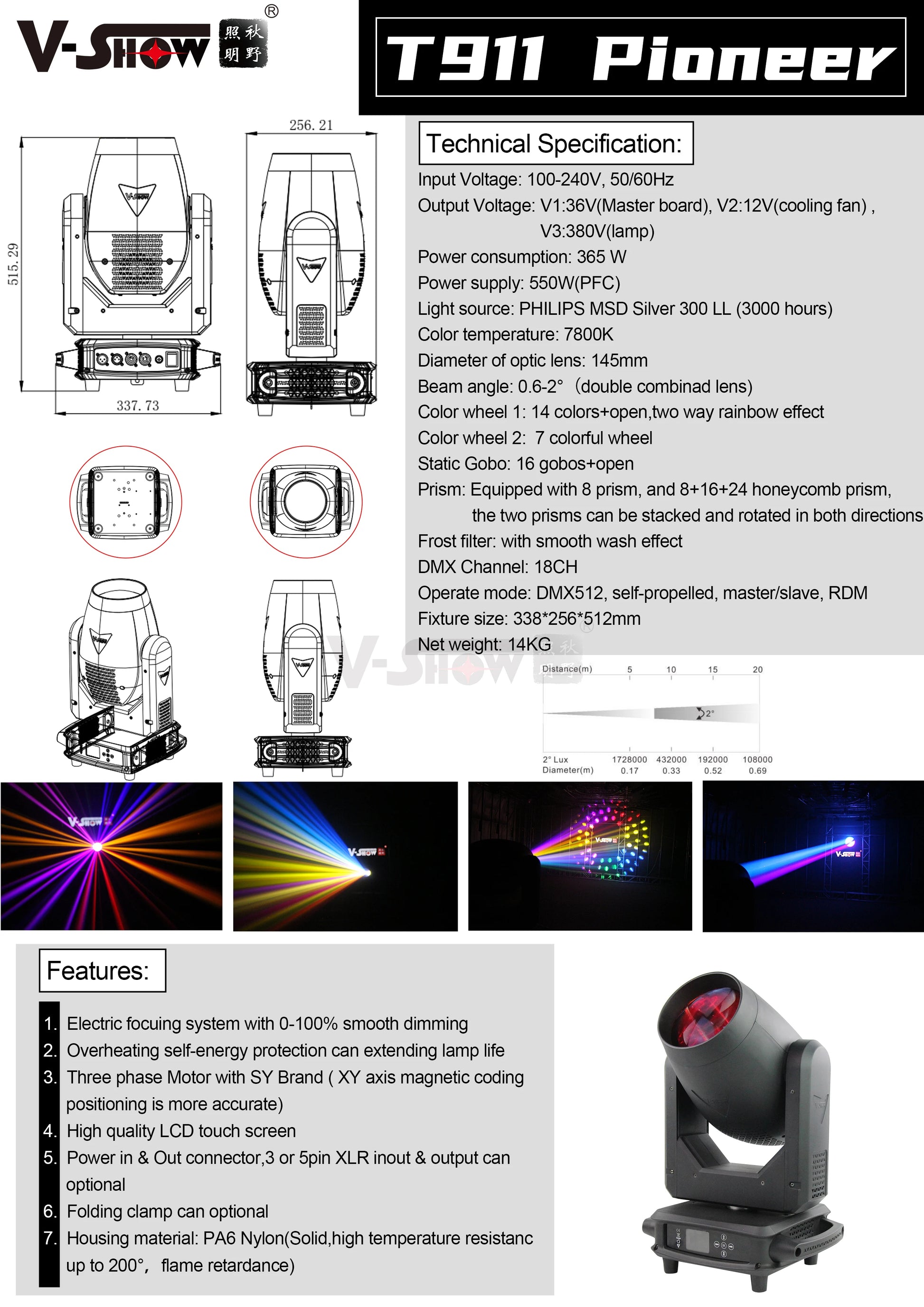

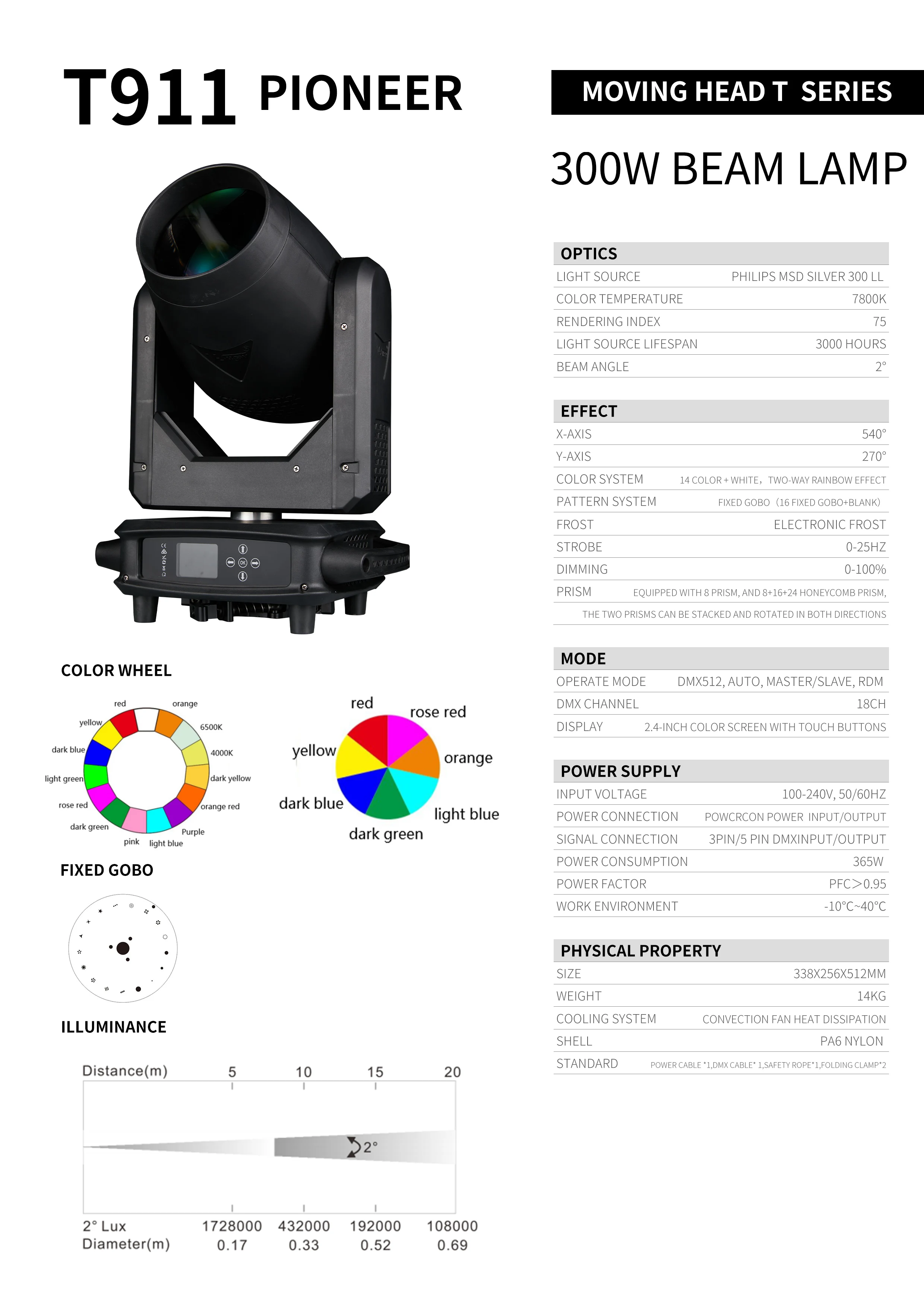

Product Parameter:
| Power supply | 550W |
| Color temperature | 7800K |
| Diameter of optic lens | 145mm |
| Beam angle |
0.6°-2° When the beam angle is 2°, the illuminance at 10 meters can reach 432,000 LUX Color |
| Color wheel 1 |
14 colors +open, two-way rainbow effect |
| Color whee 2 |
7 colorful effect wheel with fog |
| Static gobo | 16 gobos plus 1 white circle With fog and colorful effects |
| Prism |
Equipped with 18 prism, and 8+16+24 honeycomb prism, the two prisms can be stacked and rotated in both directions |
| DMX Channel | 18CH |
| Operate mode |
DMX512, self-propelled, master/slave, RDM Electric focusing system Outstanding strobe effect with variable speed 0-100% smooth dimming Control panel: LCD Touch screenOver |
| Control panel |
LCD Touch screenOverheating self-energy protection bulbs, extending lamp life X-axis rotation angl |
| X-axis rotation angle | 540 |
| Y-axis rotation angle |
270 Three phase motor with SY Brand |
| Housing material |
PA6 Nylon(solid,high temperature resistance to 200°flame retardance) |
| Power Outlet | Power Connector Input/Output |
| Signal Outlet | standard 3 Pin XLR socket(can customized 5 pin XLR socket) |

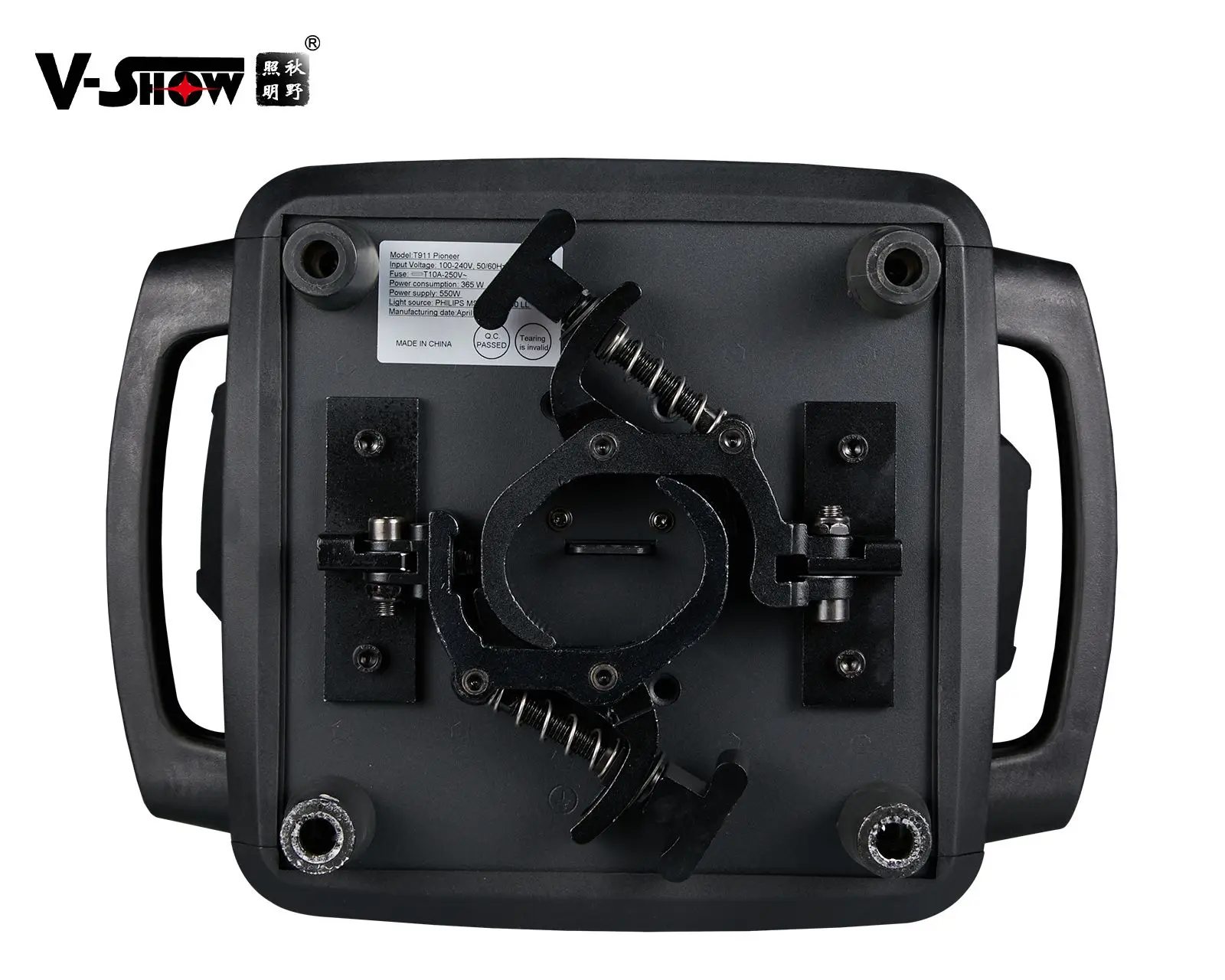

| Installation | 2x fast lock (folding clamp can optional) |

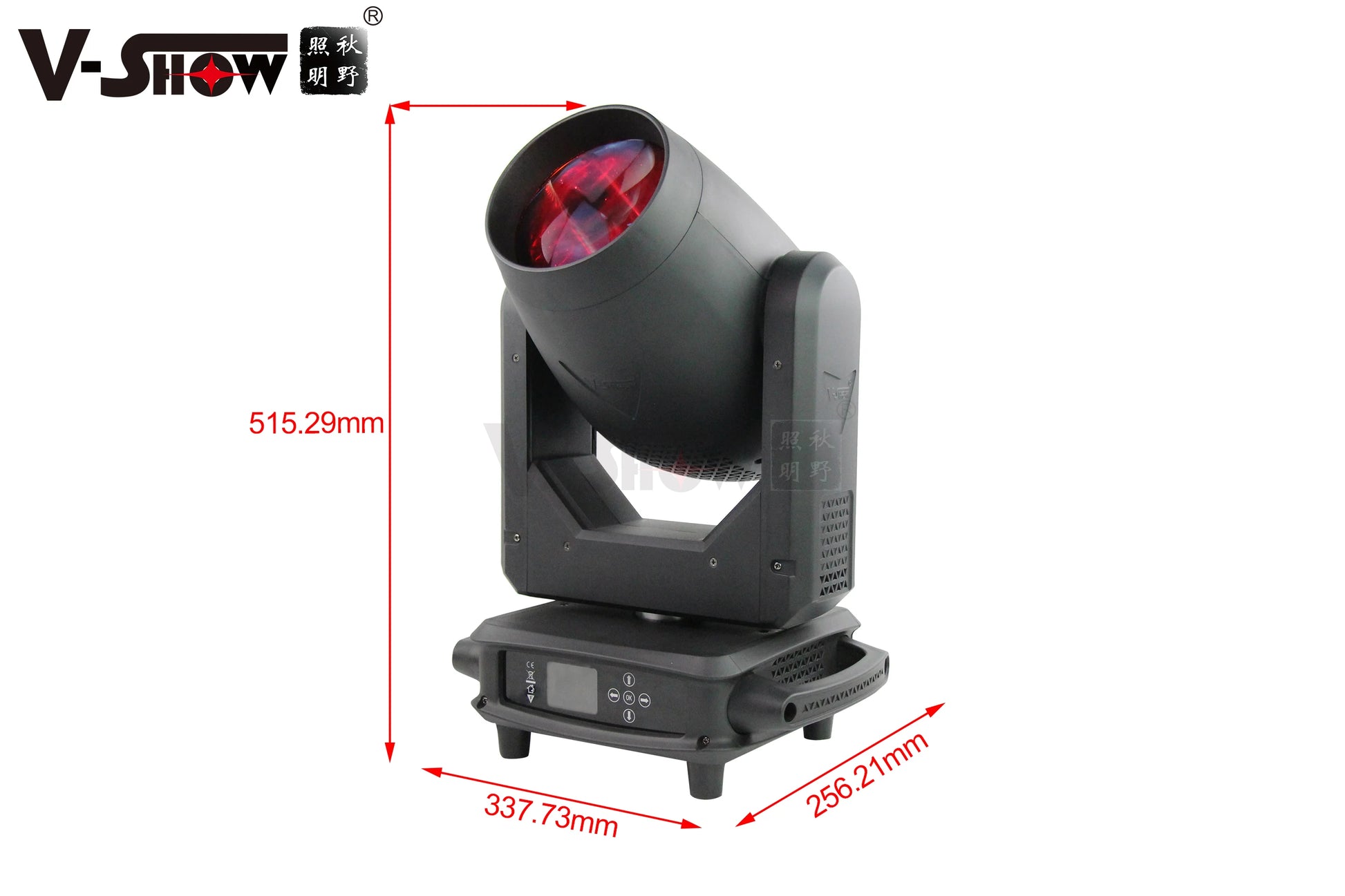

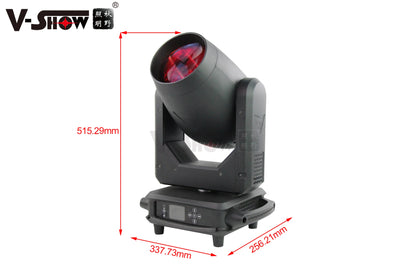

| Fixture size | 338x256x512mm |
| Net weight | 14KG |
Features:
T911BEAM adopts imported light source, which has the characteristics of small
size and high light efficiency. The 2° beam angle can release sharp, bright, full,
strong penetrating power, forming a strong visual impact effect. The rich color
wheel and gobo wheel provide excellent color macro and dynamic effects.
Built-in 8 prisms and 8+16+24 honeycomb prisms can be rotated and
superimposed in both directions, the lines are clear and sharp, and the area is
wide, which can create a brilliant and changeable beam effect, dual-chip strobe,
variable strobe speed, and linear dimming, light body Lightweight design, the
net weight is tight 14KG, the shell is resistant to high temperature and flame
retardant materials, to meet the needs of various places

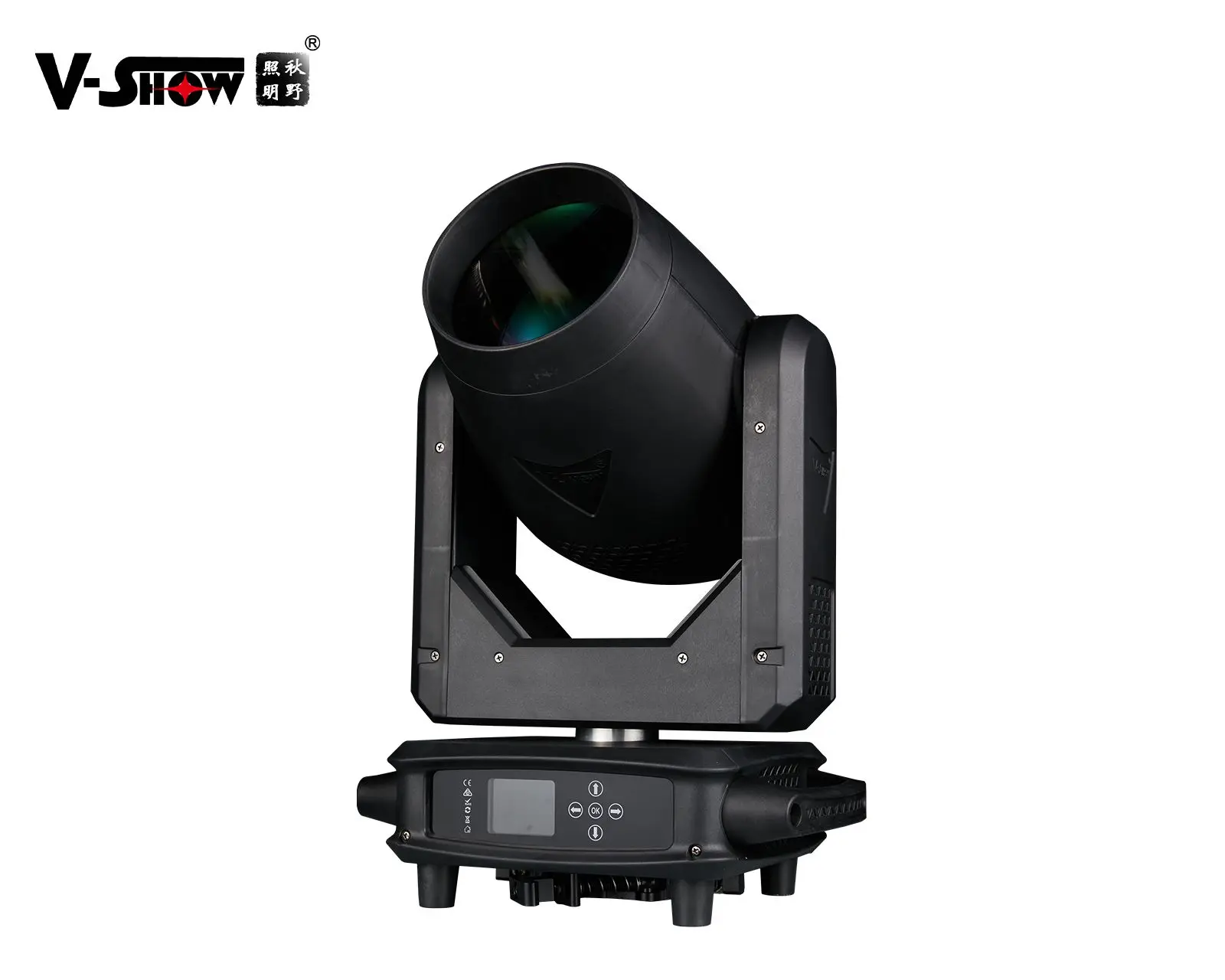

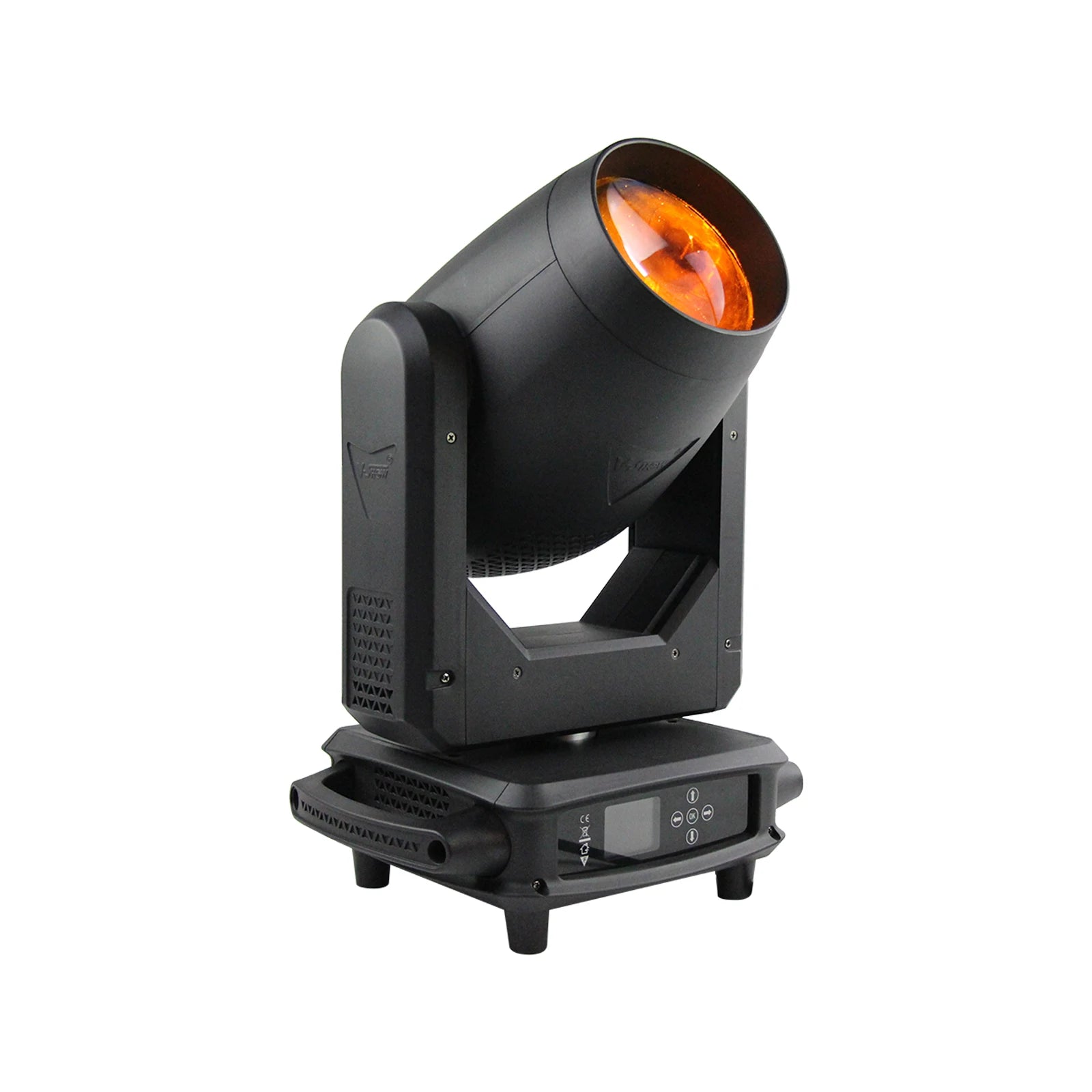

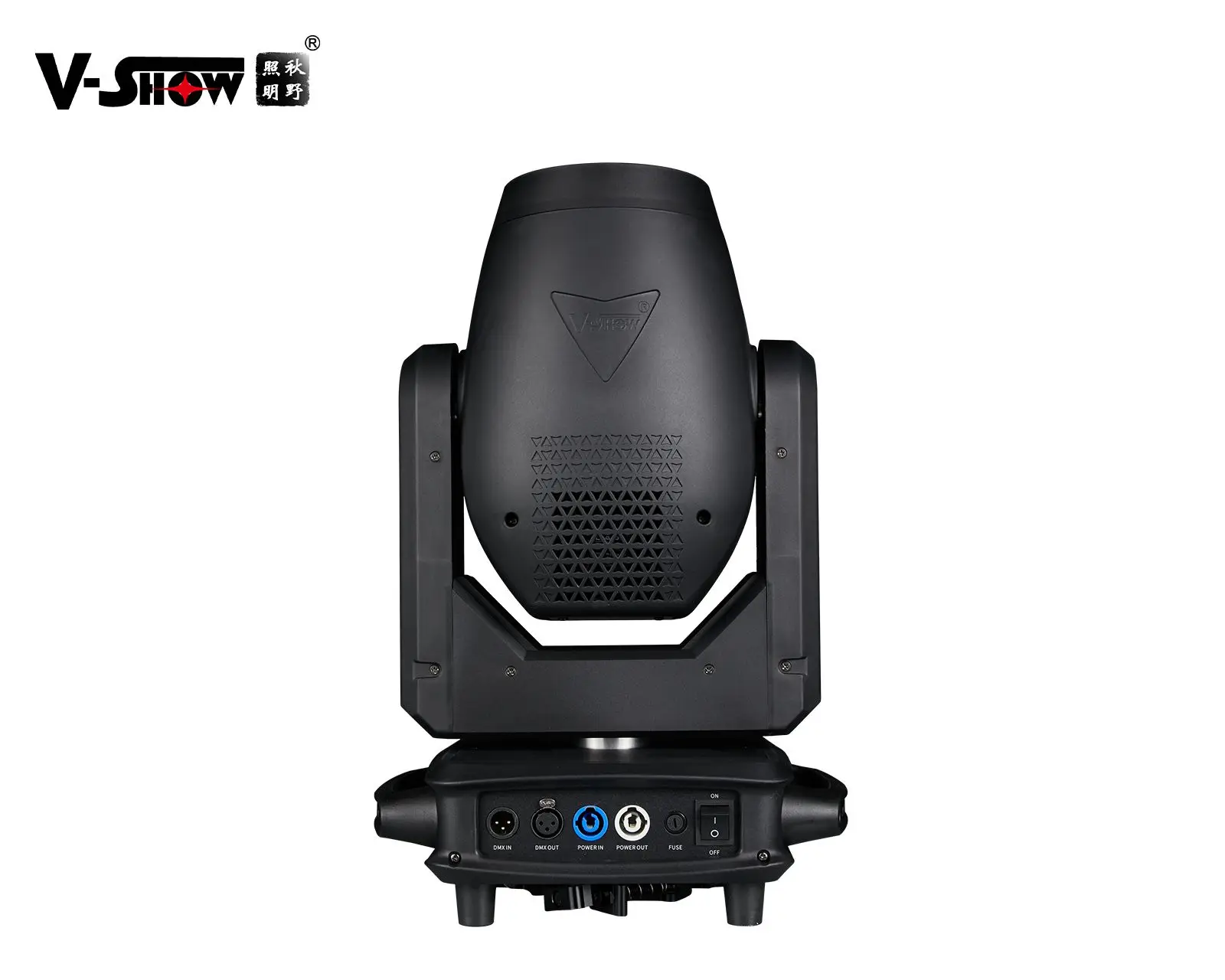

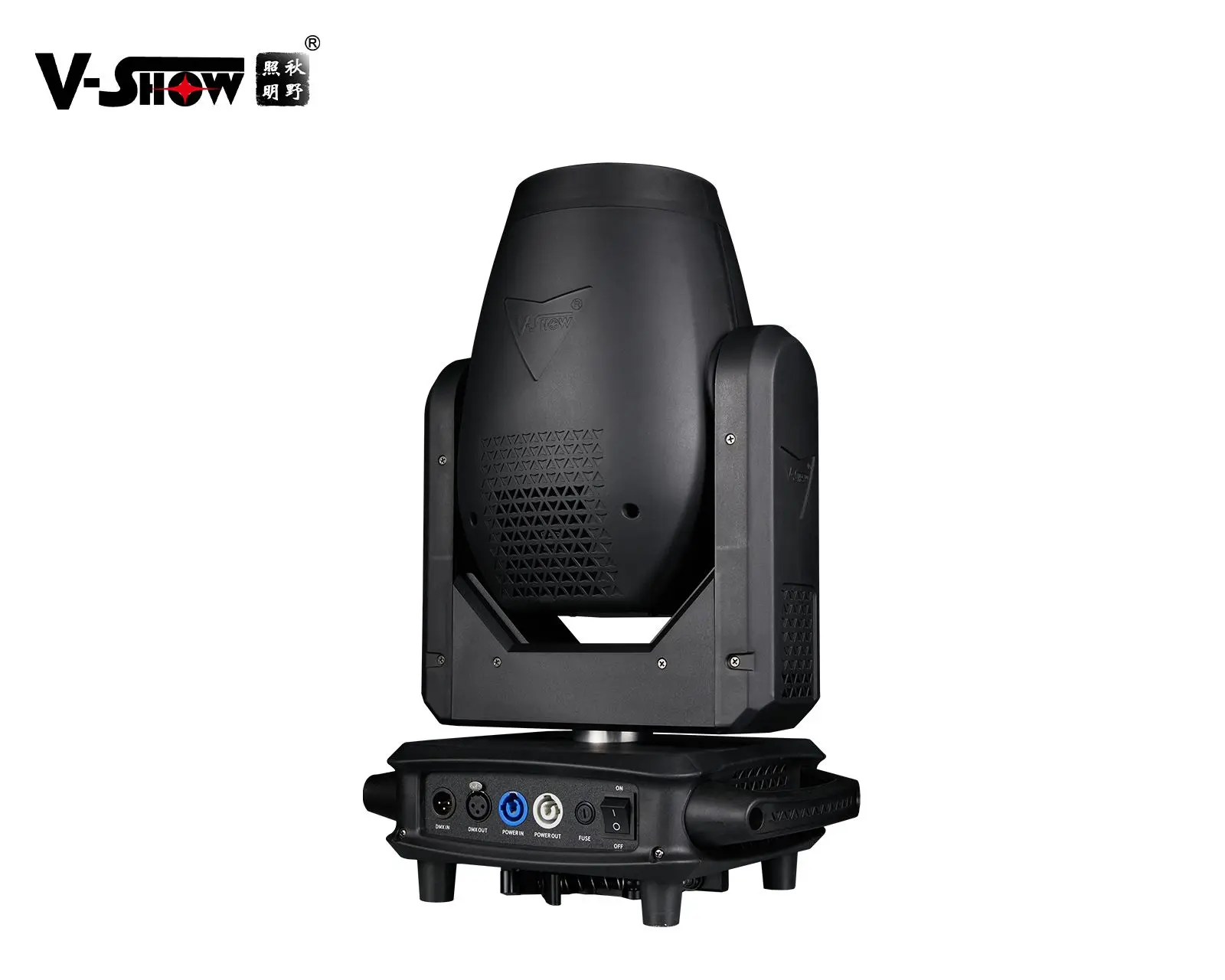

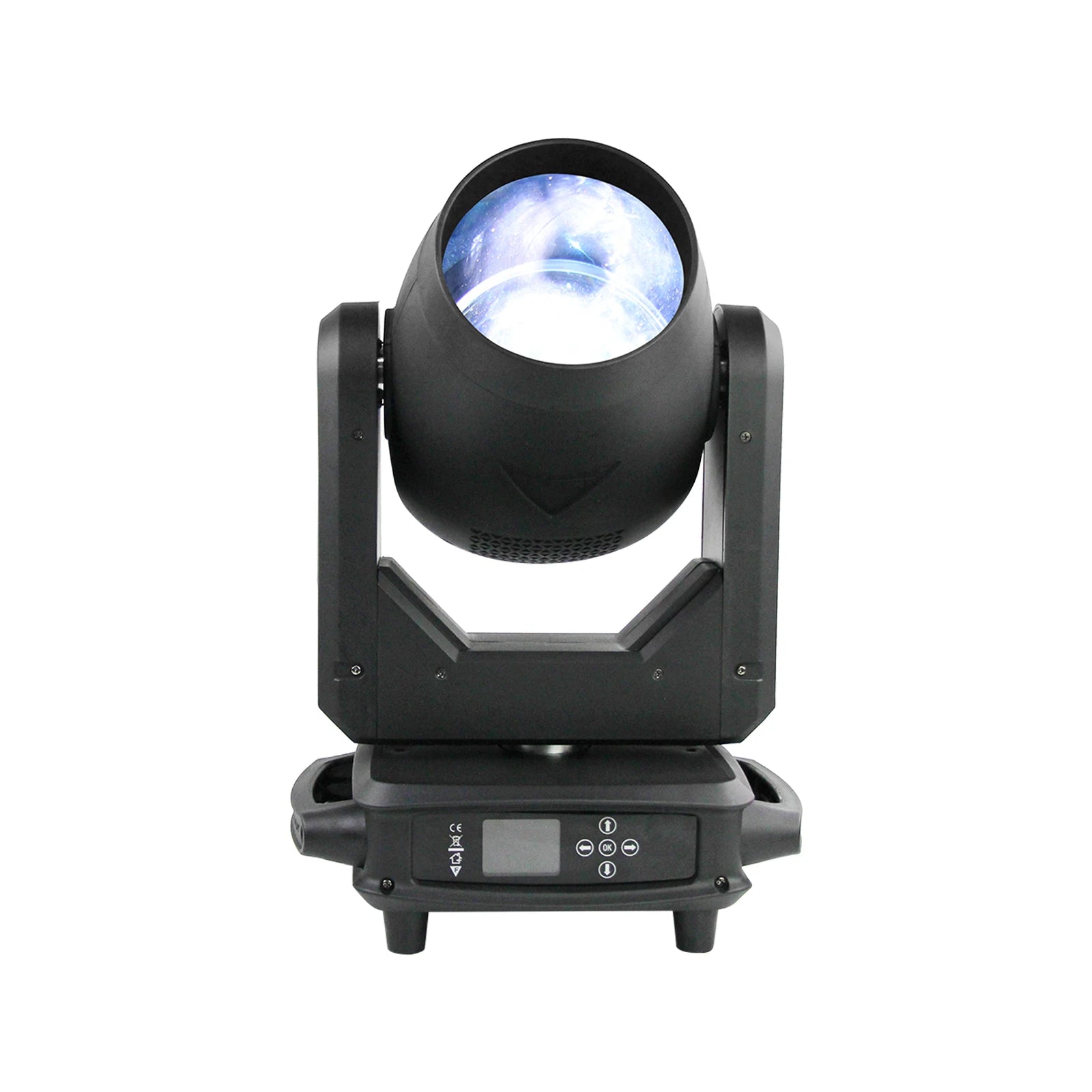

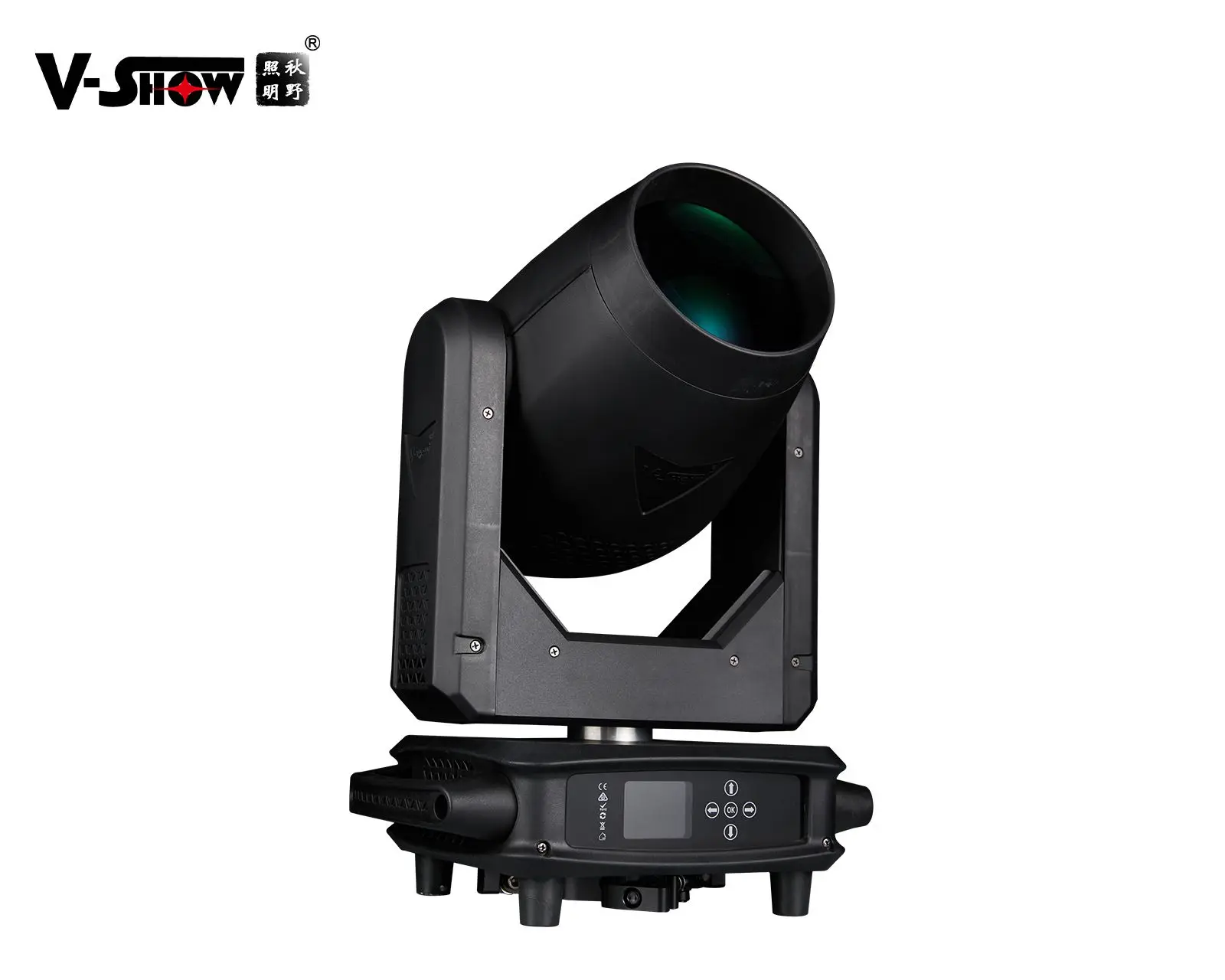

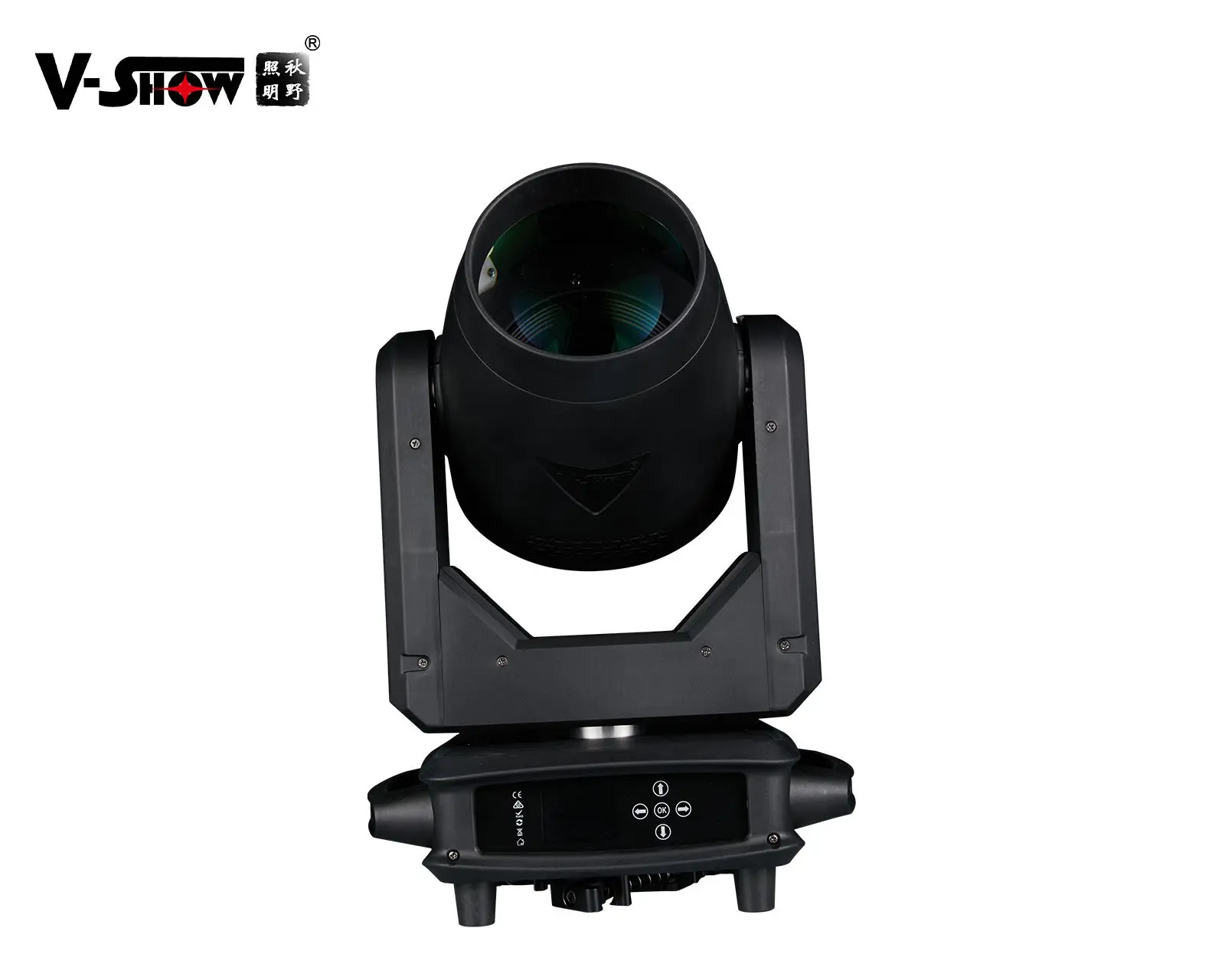

Product Show:

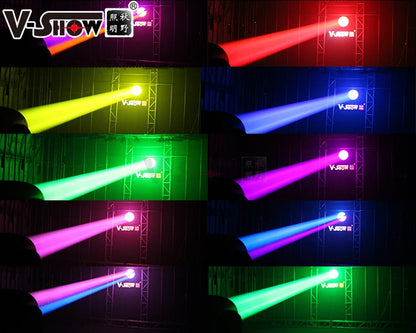

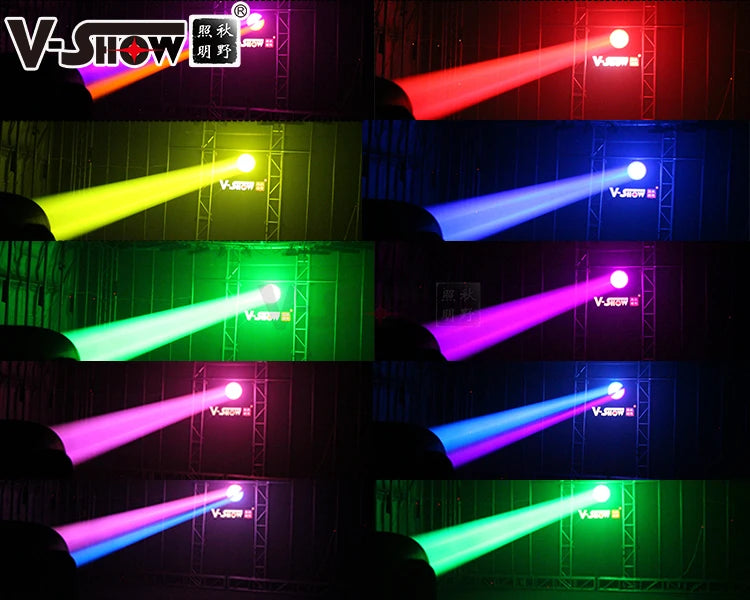

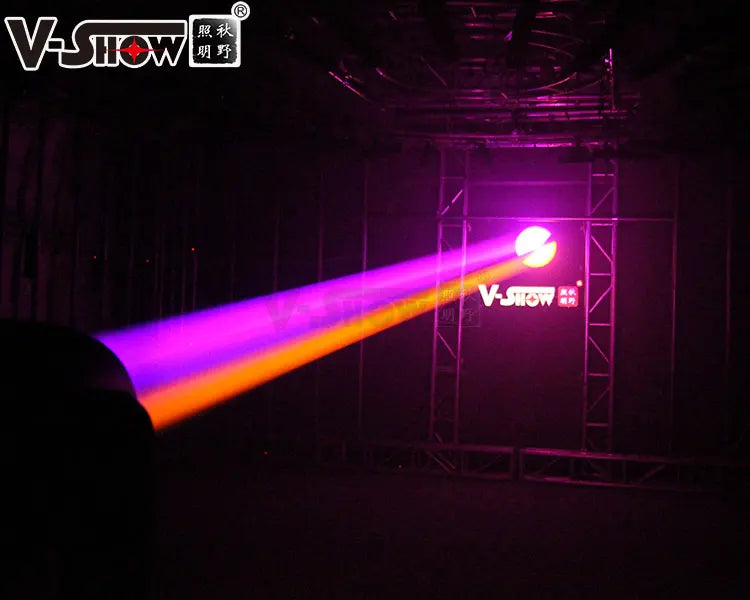

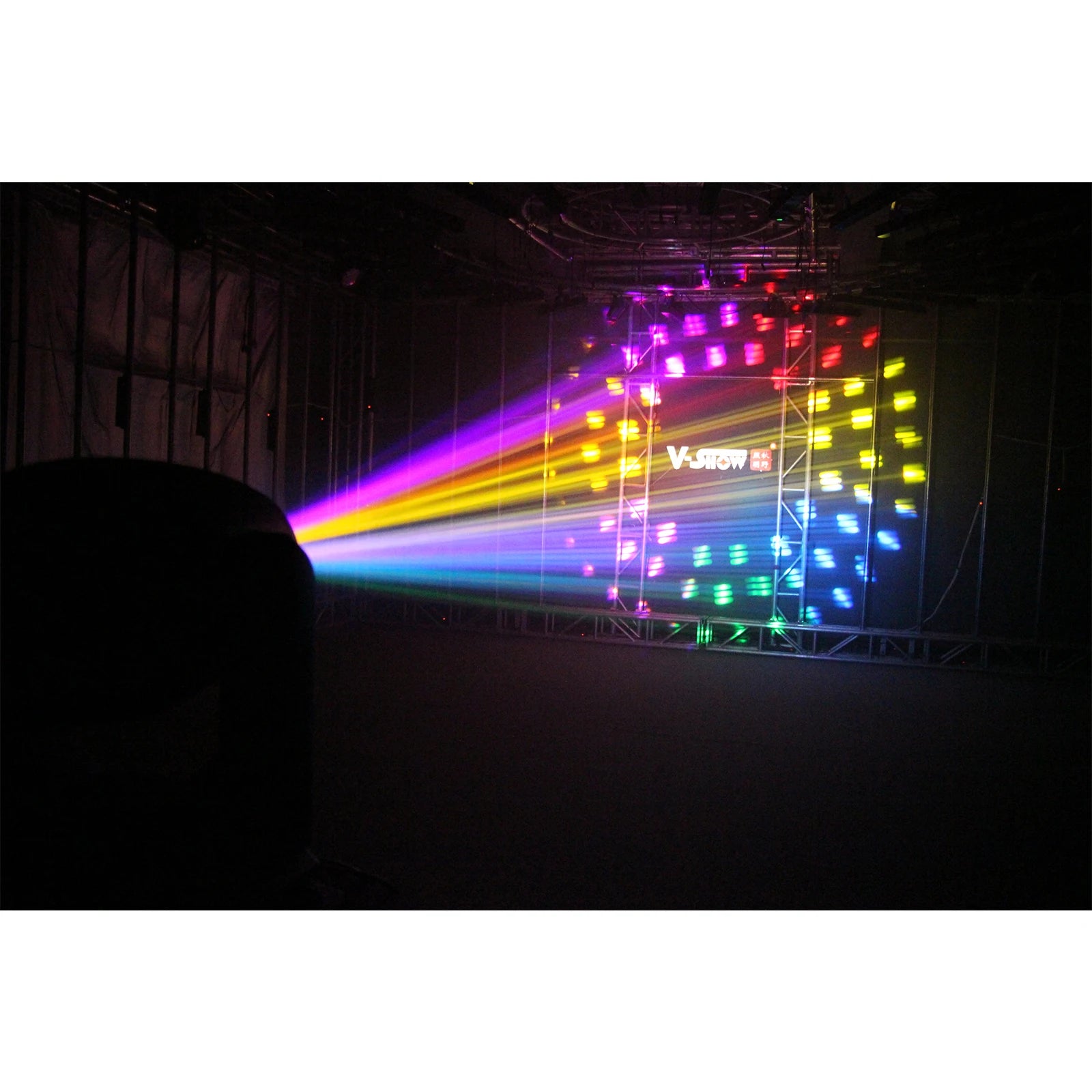

Product Effect:
