Product Description

Attention:Only the pressure measurement function (i.e. the remaining battery capacity) is available, rather than directly detecting the battery capacity. Please do not misunderstand buyers.

The listed price is the unit price of the machine, excluding the batteries shown in the picture.

This product can only measure 1.5V and 9V batteries. If measuring other voltage batteries, it may burn out the instrument

Super Nanfu battery cannot be measured

This product does not require a built-in battery for measurement, and displays the power level of the tested battery

The voltage of the battery measured by this product shows what V it is. The voltage of the battery is proportional to its charge, and the higher the voltage, the more fully charged the battery is

This product mainly measures whether the battery is charged or not. It is not a professional voltage measuring instrument, please do not purchase it if needed!

Digital version:

9V battery:

The full charge voltage of nickel hydrogen, lithium, and alkaline batteries varies, but it is definitely above 8V, and generally below 7V when there is no power;

1.5V disposable battery (including 1.5V alkaline button cell):

Full charge is around 1.6V, and no charge is around 1.0V;

1.2V nickel hydrogen and nickel cadmium rechargeable batteries:

Full charge is around 1.3V, and no charge is around 1.0V

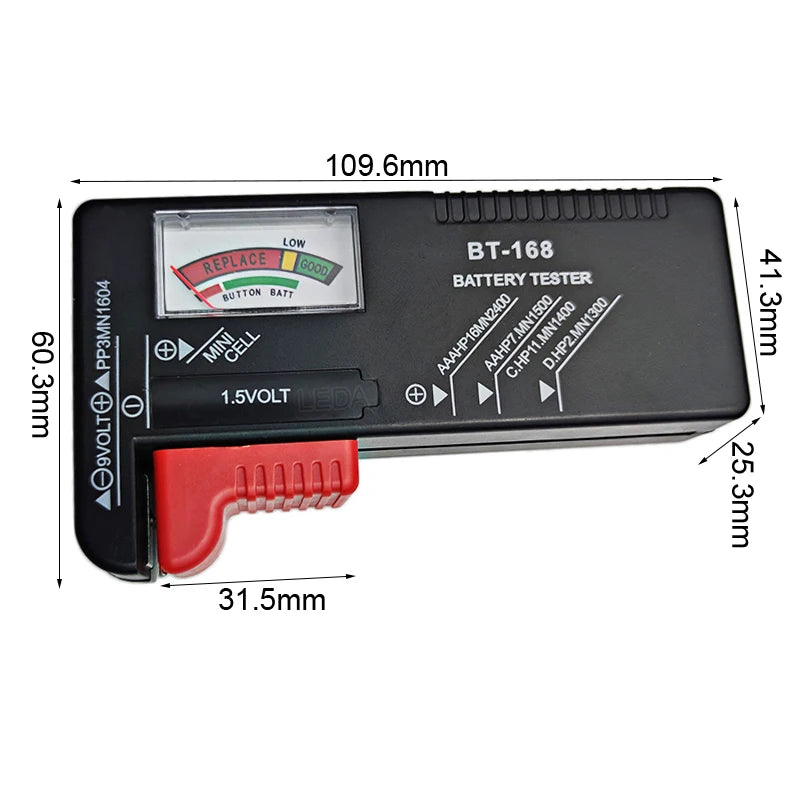

Pointer style:

Red (RE-PLACE replacement or RE-CHARGE charging): If the indicator needle points to this block, the battery under test needs to be replaced or recharged, which means the battery is basically unusable;

Yellow (LOW): The battery level is low, but some appliances can still be used

Green (GOOD): The battery is fully charged

Product model: BT168D export neutral
